Volteq High Current Plating Rectifier HY30200EX 0-30V DC 0-200A Remote Control

Volteq High Current Plating Rectifier HY30200EX  0-30V DC 0-200A  Remote Control

Tap to enlarge

12345

5.0 average, based on 1 reviews

$4,000.00$2,395.00


Product Information
Specification

For sale is a newly designed VOLTEQ HY30200EX. VOLTEQ HY30200EX is a high current electroplating rectifier with built-in over-voltage and over-current protection, ideal for anodizing and plating applications in commercial metal finishing shops, as well as battery charging and DC motors. HY30200EX is one of the most powerful variable DC power supply we carry, with the maximum DC power of 6000W. This high quality plating rectifier can be continuously adjustable at 0-30V DC and 0-200A. The current requirement on the AC line is 35A at maximum output of 6000W. Retails well over $4500.

New features include remote control box with 10 meters long cabel from main power supply, filters on fans, and timer operation for easy process control.


Features & Specifications:

  • Easy control of both current and voltage outputs using a remote control box
  • Timer and alarm function allows easy control of process
  • Outputs: 0-30 V and 0-200 A
  •  Protection: over-voltage and over-current protection
  • Input voltage: 220V -240V AC single phase (No NEMA plug included)
  • Voltage Stabilization: <=0.5%
  •  Current Stabilization: <=1%
  • Load Regulation: <=0.5%
  • Ripple noise: CV <= 5%
  • LCD reading accuracy: +/-1% +/-1 digit
  • Replaceable filter on fans
  • Environment: 0-40C, relative humidity < 90%; no condensation
  • Size: 22.25" Lx 17.25" Wx 9" H
  • Weight: 60 lbs
  • Warranty: 1 year

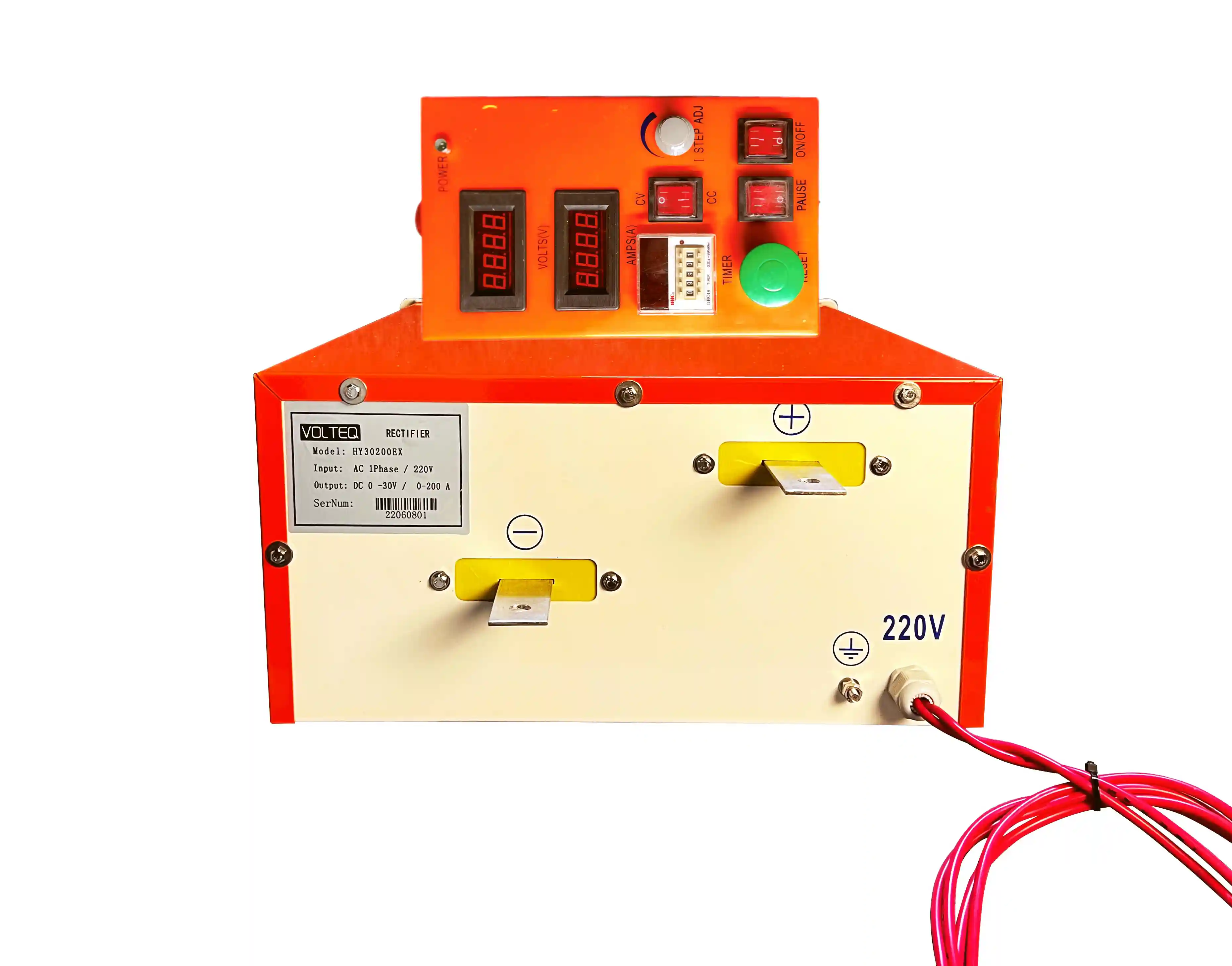

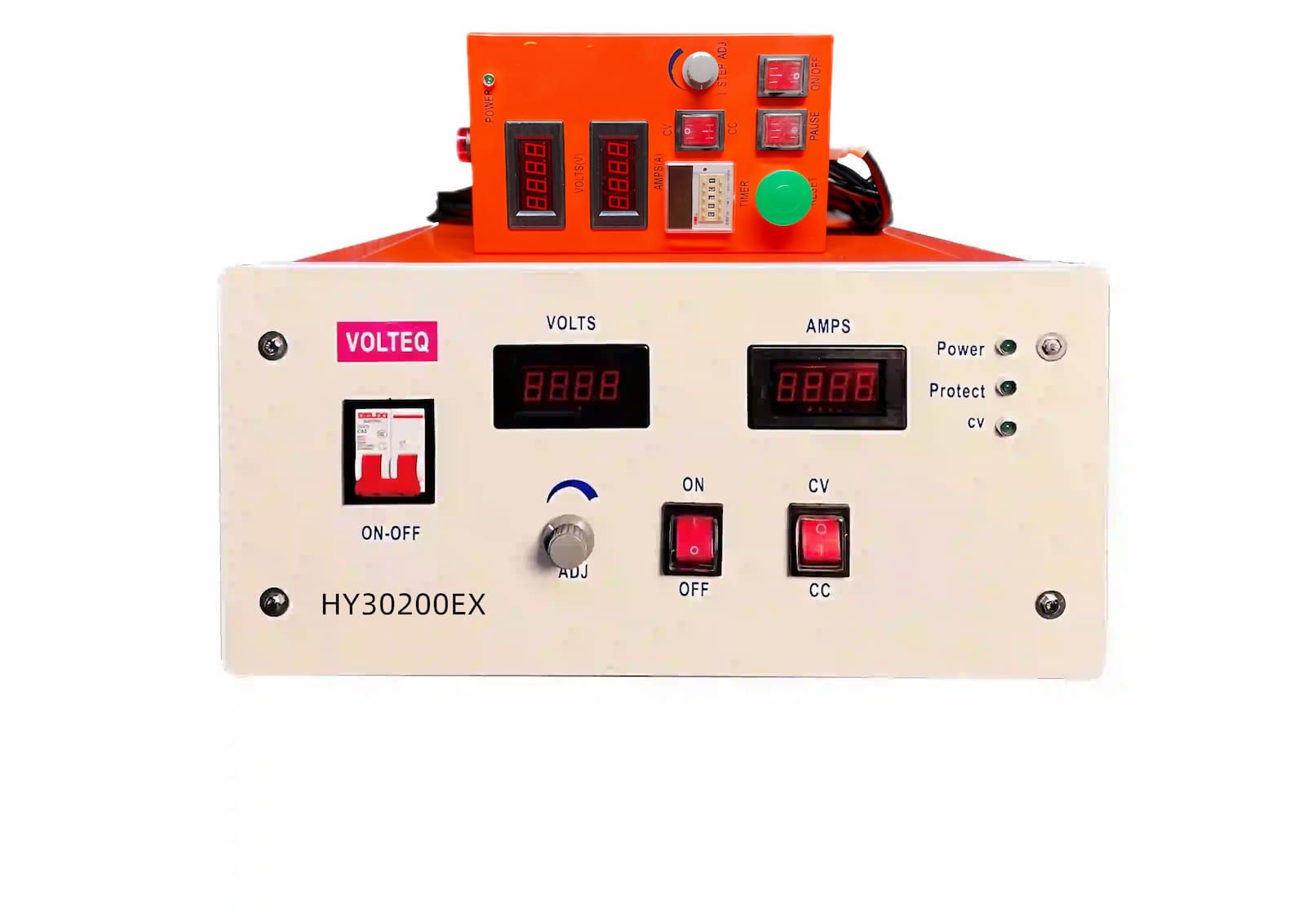

200A Plating Power Supply HY30200EX
200A Plating Power Supply HY30200EX
200A Plating Rectifier HY30200EX
Product CodeHY30200EX_controller
ManufacturerVOLTEQ
Stock Level10
ConditionNew
Weight75lb
Width17″
Height8″
Depth24.5″
