HY181000EX High Current Electroplating Rectifier 18V 1000A Remote Control

For sale is a newly designed VOLTEQ HY181000EX with soft start capability (a ramp function that is useful for anodizing applications to avoid sample burning). VOLTEQ HY181000EX is a high current electroplating rectifier with built-in over-voltage and over-current protection, ideal for anodizing and plating applications in commercial metal finishing shops, as well as battery charging and DC motors. HY18500EX is one of the most powerful variable DC power supplies we carry, with the maximum DC power of 18000W. This high-quality plating rectifier can be continuously adjustable at 0-18V DC and 0-1000A. Retails well over $8000.

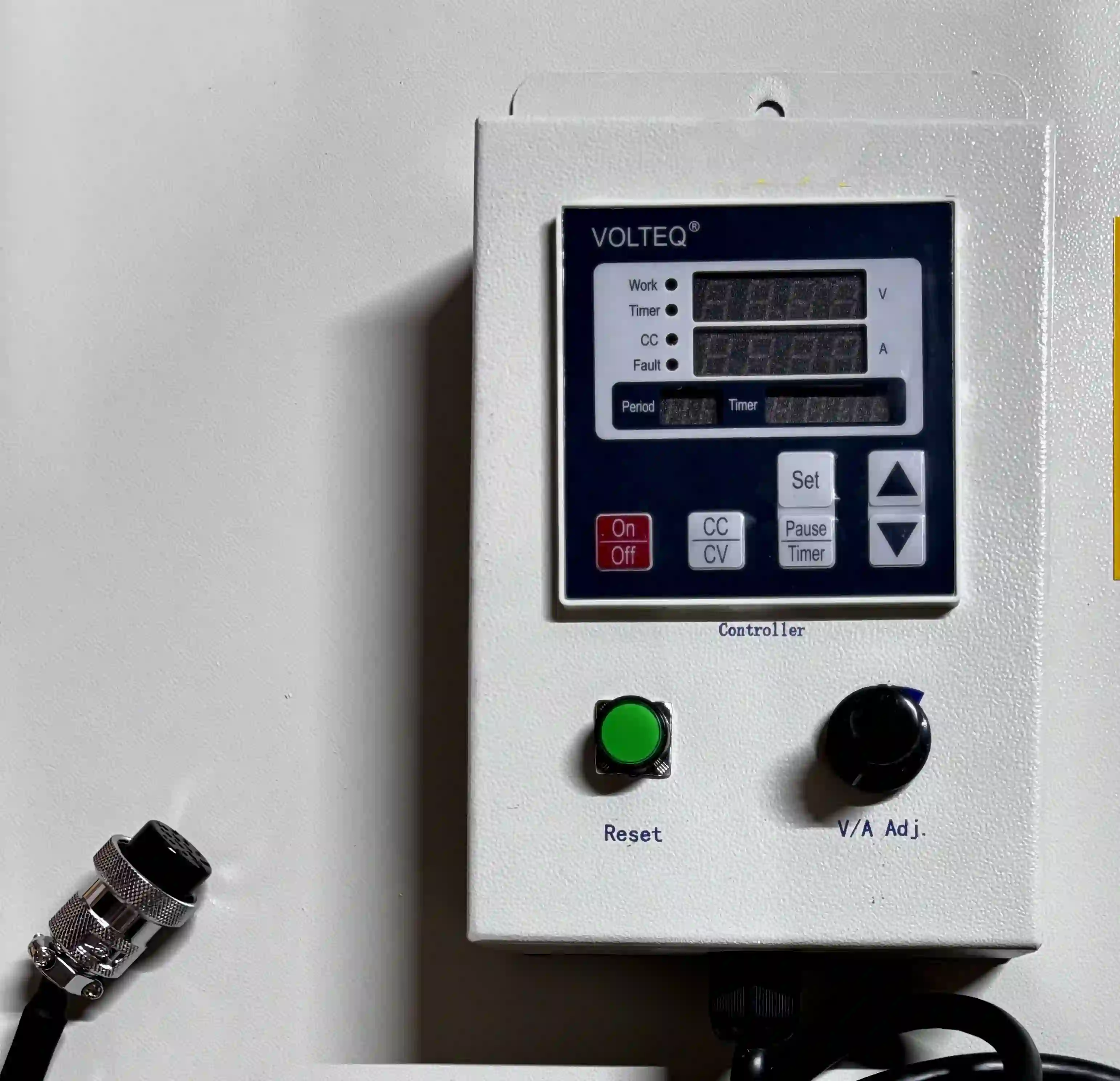

New features include remote control box with 10 meters long cabel from main power supply, filters on fans, and timer operation for easy process control.

Features & Specifications:

• Easy control of both current and voltage outputs using a remote control box
• Timer and alarm function allows easy control of process
• Soft start for anodizing
• Outputs: 0-18 V and 0-1000 A
•  Protection: over-voltage and over-current protection
• Input voltage: 480V AC three phase (No NEMA plug included)
• Voltage Stabilization: <=0.5%
•  Current Stabilization: <=1%
• Load Regulation: <=0.5%
• Ripple noise: CV <= 5%
• LCD reading accuracy: +/-1% +/-1 digit
• Replaceable filter on fans
• Environment: 0-40C, relative humidity < 90%; no condensation
• Size: 17.25" W x 21.25" L x 9" H
• Weight: 112 lbs
• Warranty: 1 year
