REGULATED VARIABLE LINEAR DC POWER SUPPLY HY3020D 30V 20A

$450.00 $259.95

(Bulk discounts available)

Manufacturer: VOLTEQ

Stock Level: 6

Product Information

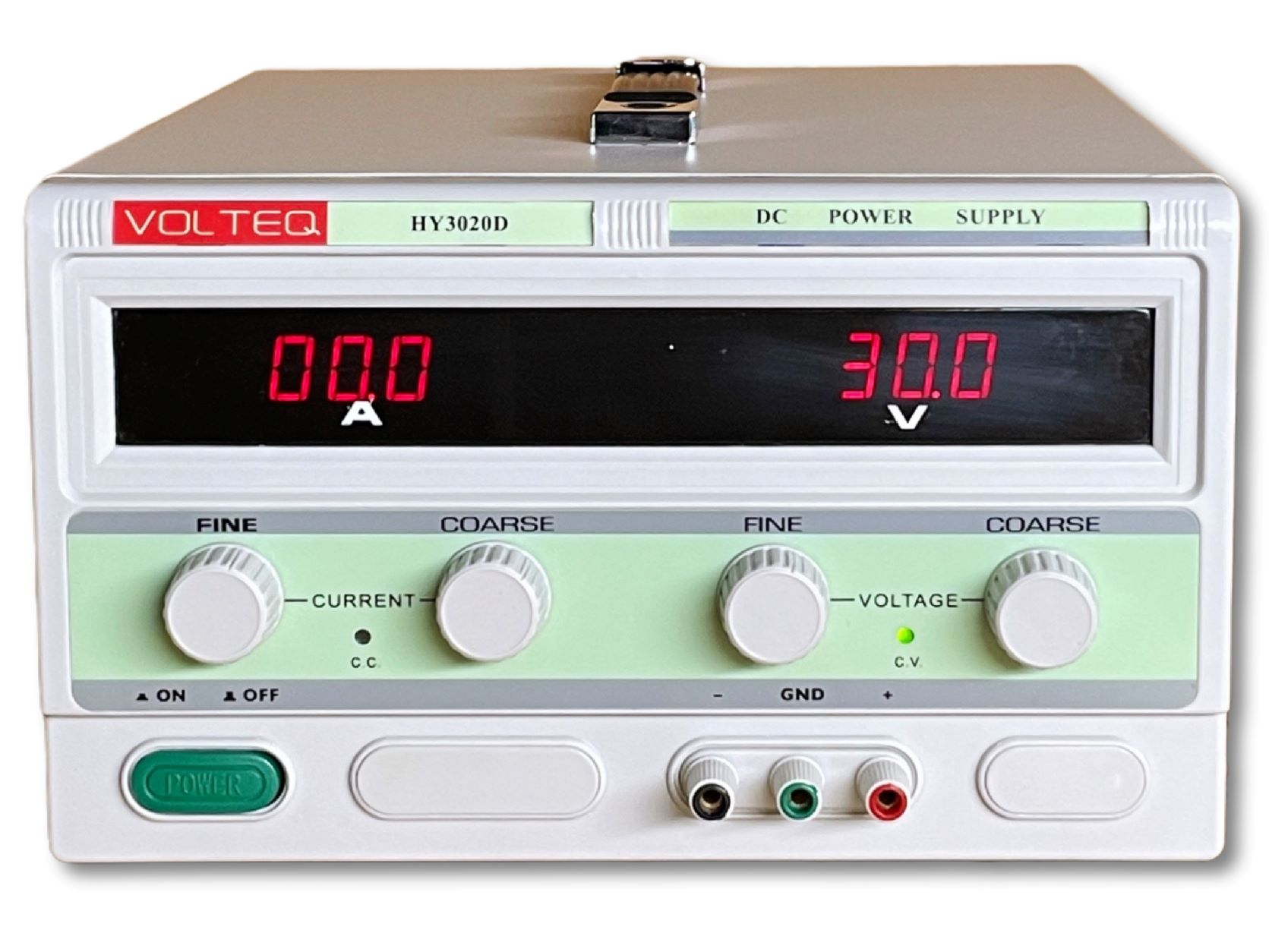

VOLTEQ HY3020D is a brand new lab grade DC regulated power supply, an improved version of the HY3020D we carry for years under Mastech brand. This highly stable, high quality DC power supply has an output continuously adjustable at 0-30V DC and 0-20A. What's more, the unit is equipped with coarse and fine controls for adjusting the voltage and current outputs, making it extremely easy to set the output to your desired level. The unit comes with 2 bright LED displays, providing accurate readout for the voltage and current values.

The improvement includes removing the short circuit protection, so you can short the output to set the current limit; and 10-trn pot for voltage adjustment; as well as fan/heat sink combination for cooling.

Features & Specifications:


  • Adjustable outputs: 0-30V and 0-20A
  • Coarse and fine controls for both current and voltage outputs
  • Input voltage: 110V/60Hz and 220V/50Hz switchable
  • Line regulation: CV <= 0.01% + 3 mV, CC <= 0.2% + 3 mA
  • Load Regulation: CV <= 0.01% + 3mV, CC <= 0.2% + 3 mA
  • Ripple noise: CV <= 0.5 mV RMS, CC <= 3 mA RMS
  • Recovery time: < 100 micro seconds
  • LED reading accuracy: +/-1% for voltage and +/-2% for current
  • Environment: 0-40C, relative humidity < 80%
  • Size: 10.6" x 14.0" x 6.0"
  • Weight: 24 lbs
  • Warranty: 1 year
 Linear Power Supply HY3020D
 Linear Power Supply HY3020D

Product Code: HY3020D_new

Quantity Discounts

You can save money on this item when you purchase several at a time. The table below shows the minimum quantities required to benefit from this offer, and how much they'll cost.


Quantity Price per unit
1+ $259.95
